Fuel cleaning system for motor boats
Reliable cleaning of diesel and petrol – easy retrofitting
Contaminated fuel is one of the most common causes of engine damage in motor boats. Water, bacteria, suspended solids or air bubbles get into the tank even with high-quality diesel or gasoline – often unnoticed. The consequences are usually delayed: startup problems, loss of performance, clogged filters or costly repairs.
The fuel cleaning system for motor boats from GoFilter reliably removes water, bacteria and other particles from diesel and gasoline. The system is permanently integrated into the boat, works automatically or manually and can be easily retrofitted on almost all motor boats.
This is how the GoFilter fuel cleaning systems work
High-quality special filters from renowned manufacturers are used in the GoFilter fuel cleaning system. Depending on the configuration, SEPAR filters, Parker Racor turbine filters or Micfil ultrafine filters are installed. These remove up to 99% of the impurities from the fuel – including water, microorganisms, dirt particles and air bubbles.
The control is carried out via a stored-program control (PLC). As a result, the system can either be started manually or operated automatically according to a defined schedule. The fuel is regularly removed from the tank, filtered and cleaned and returned again.
Thus, GoFilter becomes the central component of a well-thought-out fuel management system and an important component of the preventive maintenance of your motorboat.
Available variants – suitable for every motorboat
GoFilter fuel cleaning systems are available for different tank sizes, fuel types and application requirements. Depending on requirements, various filter technologies and performance levels are available.
EXCLUSIVE systems with Micfil ultrafine filters up to 0.5 µm
- GOF 400 B exclusive: Petrol, tank size 0 - 400 liters
- GOF 800 B exclusive: Petrol, tank size 300 - 1,000 litres
- GOF 1800 B exclusive: Petrol, tank size 800 - 2,000 litres
- GOF 800 exclusive: Diesel, tank size 0 - 1,000 liters
- GOF 1800 exclusive: Diesel, tank size 800 - 2,000 liters
- GOF 3000 exclusive: Diesel, tank size 3,000 - 8,000 liters
Systems with SEPAR filter components up to 10 µm
- GOF 800 / 800 H: Diesel, tank size 0 - 1,000 liters
- GOF 1800 / 1800 H: Diesel, tank size 800 - 2,000 liters
- GOF 3000: Diesel, tank size 1,800 - 3,000 liters
- GOF 8000: Diesel, tank size 3,000 - 8,000 liters
Systems with Griffin turbine filters up to 2 µm
- GOF 600 turbine: Diesel, tank size 0 - 600 liters
- GOF 800 turbine: Diesel, tank size 0 - 1,000 liters
- GOF 1800 turbine: Diesel, tank size 800 - 2,000 liters
- GOF 3000 turbine: Diesel, tank size 1,800 - 3,000 liters
In addition, various base plate sizes, selectable on-board voltages and individual adjustments are possible.
Ultra-fine filters for fuels – maximum filtration performance
The Micfil ultrafine filters used in the EXCLUSIVE systems offer a significantly higher filter performance than conventional standard filters. They filter particles up to 0.5 µm and absorb water from diesel, gasoline and biodiesel.
Thanks to their high dirt absorption capacity, long service life and reliable water absorption, they ensure a consistently high fuel quality. The corresponding certifications apply exclusively to the filters installed in the GoFilter EXCLUSIVE systems.
Characteristics of the GoFilter fuel cleaning system
- filtration up to 0.5 µm
- water-absorbing
- high flow rate
- long service life
- space-saving design
- easy filter insert replacement
- suitable for pressure and negative pressure operation
- up to 10 bar operating pressure
- eliminates up to 98% of all bacteria
Cleaning boat fuel – with a system
Condensation, bacteria and suspended solids are not only produced during long service lives. Even under unfavorable conditions, larger quantities of diesel or gasoline can be contaminated within a short time. The consequences range from loss of performance to serious damage to the engine, tank and fuel system.
With the GoFilter fuel polishing system, you can specifically prevent these problems. Regular, automatic cleaning keeps the fuel in optimal condition – and you can enjoy your time on the water without worrying about the engine.
Your advantages with GoFilter
Handpicked quality
Components from manufacturers such as SEPAR, Siemens and Parker, carefully tested and hand-assembled.
Robust construction
Specially developed for use on motor boats and designed to be durable.
Reliable filtration
Finer filter membranes than with many comparable systems, optionally up to 2 µm.
Individual configuration
Adaptation to fuel type, on-board voltage, tank size and space conditions.
Simple operation
Manual or automatic cleaning with a warning signal when filter replacement is required.

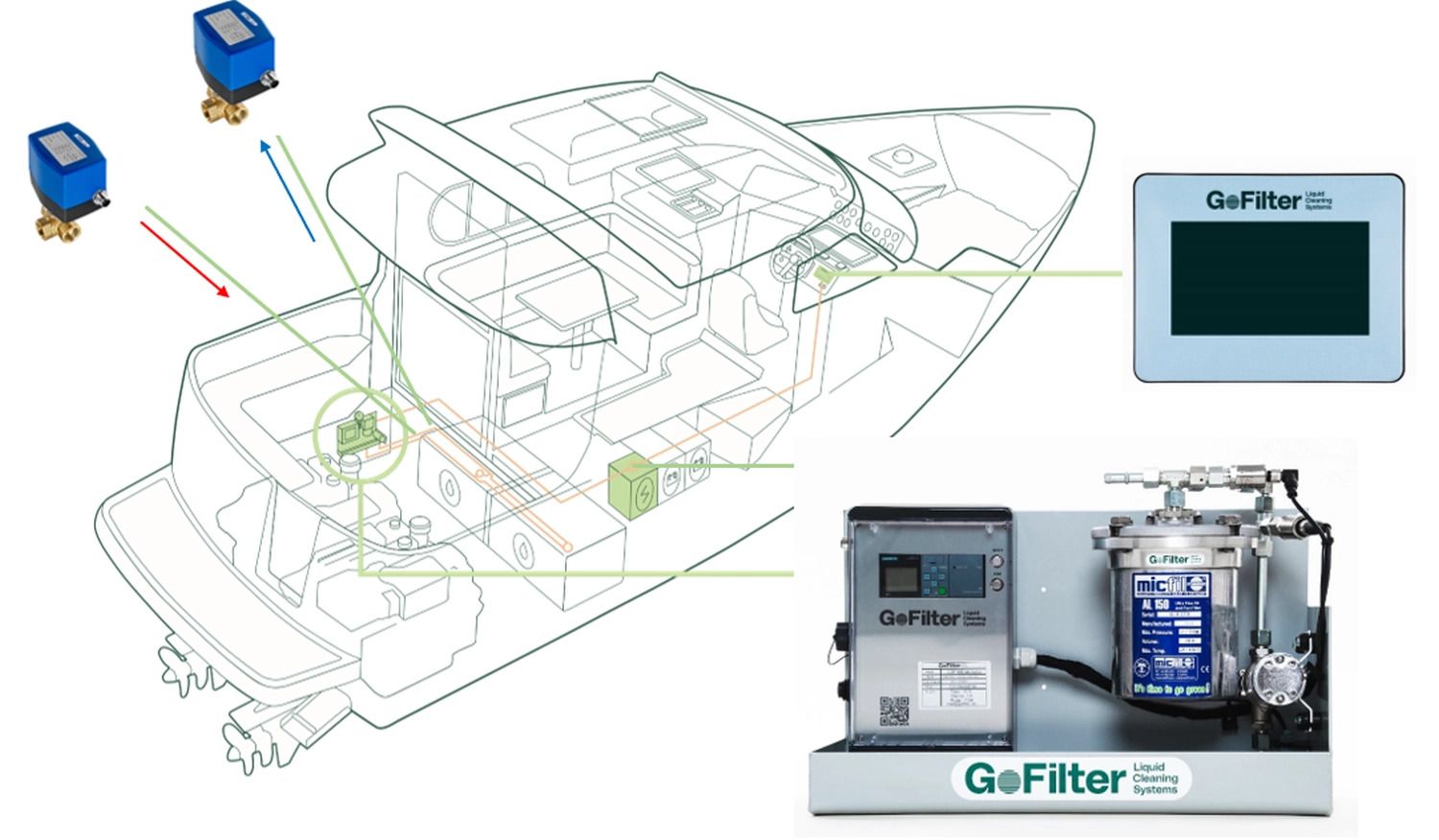

Fuel cleaning system for retrofitting or as initial equipment
The GoFilter fuel cleaning system can be easily retrofitted to motor boats of almost any size. It is connected to the existing fuel lines and does not require any modifications to the tank or engine. The assembly takes place uncomplicatedly in the shipyard of your trust.
Alternatively, the system can already be taken into account as initial equipment during the new construction planning of a boat – optimally dimensioned and perfectly integrated.
Would you like to equip your motorboat with a GoFilter fuel cleaning system?Just send us some key data – we will make you an individual and non-binding offer.
FAQ – fuel cleaning systems for motor boats
For which motor boats is GoFilter suitable?
For motor boats with diesel or petrol engines of various sizes and tank volumes.
Can the system work automatically?
Yes. The cleaning can be done time-controlled or manually via the PLC control.
Is retrofitting complicated?
No. The system is integrated into the existing fuel lines and does not require any modifications.
Which filters are used?
Depending on the variant, SEPAR filter, Parker Racor turbine filter or Micfil ultrafine filter.
How often does the filter need to be changed?
Thanks to the high dirt-holding capacity, long service lives are possible; a warning signal informs about the need for change in good time.
